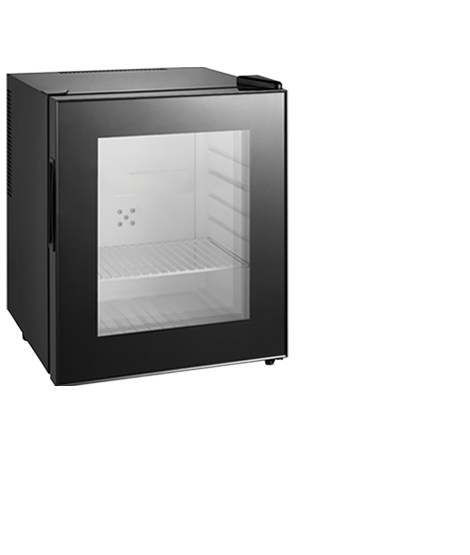

PRIMO PTF-30A

Manufacturing Certificates: GB/T19001-2016/ISO9001:2015 Quality Management, GB/T24001-2016/ISO14001:2015 Environmental
Management, GB/T45001-2020/ISO45001:2018 Occupational Health and Safety Management.

Ventilation requirements for built-in minibars: a channel for air circulation is imperative for ventilation and operation.
A minimum open area of 31 in2 (200 cm2).

Specifications may change without notice due to continuous product development.

Loading qty 20GP/40GP/40HQ: 228/468/552
Loading qty with pallet 20GP/40GP/40HQ: 144/288/384

PTF-30A Technical Specifications

EU-Energy Declaration

Cooling Temperature Range	8°C-17°C
Cooling Type	Peltier Thermoelectric
Refrigerant	R600A
Temperature Control	Mechanical Control Knob
Capacity (liters)	28L
Door Hinge	Reversible (additional parts included)
Interior Color	White
Inner Shelves/Door Racks	2 / 0
Compartment Type	Pantry
Energy Class	C
Energy Efficiency Index	62
Climate Class	SN, N (16°C to 32°C)
Door Options	Triple Pane Black Frame Glass Door
Dimensions HxWxD (mm)	490 x 420 x 390mm
Watts (W)	60W
Voltage (V) / Frequency (Hz)	110V or 220V / 50-60Hz
Energy Consumption (ERP)	47 Kwh/Year (C)
Interior Light	LED, White Color
ΔT Max	>17°C
Climate Class	SN, N
NW/GW (kg)	14.7 / 18.1kg
Noise Level (dB)	27 dB (A)
Handle	Top Recessed Handle
Certification	CCC / CE / CB / CETL / CSA / REACH and ROHS compliant. Our production plants are ISO9001 and ISO14001 certified

• Cooling temperature 8°C-18°C (ambient temperature 25°C)
• Adjustable feet to ensure proper level (mounting bracket included)
• No internal or external fan
• Triple Pane Glass Door

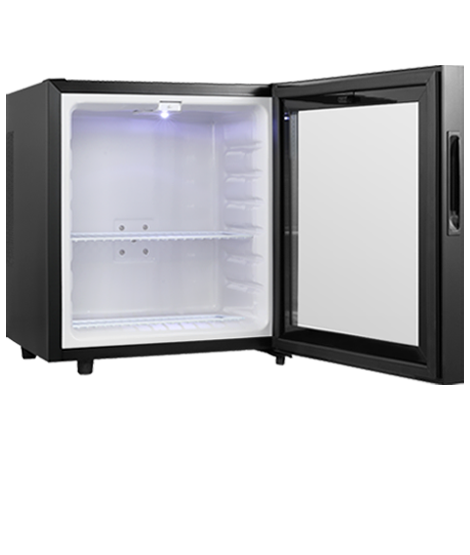

• Removable shelving for easy cleaning (2 shelves)
• Thermal insulation manufactured with eco-friendly cyclopentane
• Easily adjustable mechanical thermostat
• Reversible hinging (additonal parts included)
• Internal LED light
• Commercial grade magnetic seals keeps the door perfectly shut
• Recessed door handles
• Low energy consumption
• Frost Free Defrost
• Door Lock
• Mounting Bracket

Ventilation Specifications

A minimum opening of 31 in2 (200 cm2) for Intake, Shelf Cutout and Exhaust is required for proper ventilation.

User Manual / Installation Instructions	Cut Sheet
Product Brochure	Product Information Sheet
Limited Warranty	EEI Label

Peltier Cooling

Harness the power of Peltier thermoelectric cooling technologies to redefine the minibar experience in hotels, offering an innovative cooling solution that is not only efficient but also remarkably quiet. This cutting-edge technology utilizes solid-state components to provide reliable temperature control without the noise and vibration associated with traditional cooling methods, ensuring that your guests enjoy a peaceful and comfortable environment.

3 in 1Thermostat

Perfect blend of convenience and innovation with our fully adjustable thermostat, designed to elevate your space while keeping your beverages at the ideal temperature. This cutting-edge minibar features an automatic defrost function that ensures hassle-free maintenance, allowing you to focus on what matters most. The built-in LED light not only adds a touch of sophistication but also enhances visibility, making it easy to find your favorite drinks even in low light.

Barrel Lock

Enhance minibar security with the integrated Barrel Lock, designed to prevent unauthorized access whenever the unit is not intended for guest use. Simple, reliable, and easy to operate, the lock provides peace of mind without adding complexity to daily operations.

By combining effective security with effortless operation, the Barrel Lock delivers enhanced protection without hassle, giving users greater control whenever and wherever it is needed.

Dual Door Racks

Maximize storage capacity and organization with Dual Door Racks, designed to make the most of every inch of available space. Featuring two spacious door-mounted racks, this practical design provides convenient storage for bottles, cans, snacks, and other minibar essentials while keeping contents easily accessible.

By utilizing the door area for additional storage, the Dual Door Rack system frees up valuable shelf space inside the cabinet, allowing for greater product variety and improved presentation. The sturdy construction securely holds items in place, helping to prevent movement during everyday use.
